Description

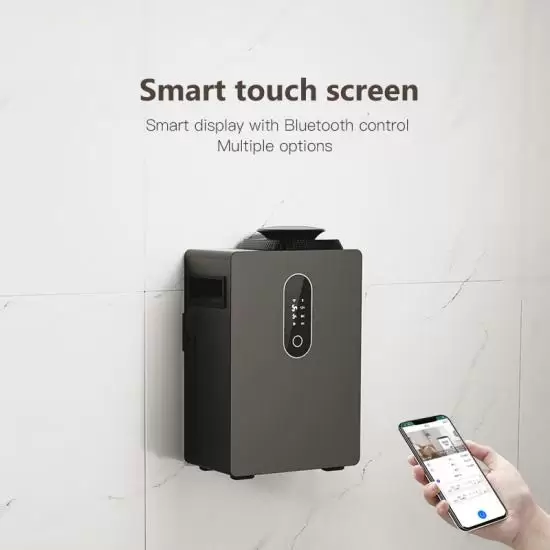

This aroma diffuser has a metal structure and a glass-like acrylic panel. The touch screen interface gives this device a modern design that is easy to integrate in any space.
It adopts fluid dynamics and the siphon principle, along with a patented micron atomization technology, which makes the fragrance spread quickly. Includes HVAC connection.
The pneumatic motor has a long service life, ensuring a durable and stable diffusion for the perfume oil.
Elegant design with high quality technology, making it the best choice for spaces up to 1000 cubic meters.
The package includes: User manual, charger, cleaning container, seal ring.
Warranty: 12 months
Technical Specs
Bottle capacity: 500ml
Power/Voltage: DC 12V /11.5W
Coverage: 1500 cubic meter
Dimension: W280mm*D102mm*352mm
Bottle capacity: 500ml
Noise level: ≤ 45dBa
Net weight: 5.1 KG
Installation method: HVAC Connect / Stand-alone
Suitable for: Hotel reception/Theatre Hall/Restaurant etc.
Diffusing Times
Working time: 1 hour, 2 hours, 4 hours, 8 hours
10 seconds aroma diffusion with 300 seconds pause (oil consumption: 0.06 ml / h diffusion)
30 seconds aroma diffusion with 300 seconds pause (oil consumption: 0.17 ml / h diffusion)
100 seconds aroma diffusion with 300 seconds pause (oil consumption: 0.46 ml / h diffusion)
60 seconds aroma diffusion with 120 seconds pause (oil consumption: 0.61 ml / h diffusion)
90 seconds aroma diffusion with 120 seconds pause (oil consumption: 0.78 ml / h diffusion)
150 seconds aroma diffusion with 120 seconds pause (oil consumption: 1.02 ml / h diffusion)
150 seconds aroma diffusion with 60 seconds pause (oil consumption: 1.31 ml / h diffusion)
300 seconds aroma diffusion with 60 seconds pause (oil consumption: 1.53 ml / h diffusion)
300 seconds aroma diffusion with 10 seconds pause (oil consumption: 1.77 ml / h diffusion)
Maintenance
To ensure the best diffusing effect, please check and clean the device every six months.
Please clean the device when you wish to replace the perfume oil or the diffusing effect will be weakened.
Maintenance steps:
1. Unscrew the used perfume oil bottle.
2. Pour a small amount of alcohol into the cleaning bottle.
3. Start the device and leave it running between 5 to 8 mins with the cleaning bottle screwed in.
4. After the cleaning process has ended, turn off the power, unscrew the cleaning bottle.
5. Screw into the device your new/old perfume oil.
6. Start your device and enjoy.
